Yderligere information
| Farve | Sort, Sølv |
|---|
38.500,00 kr.

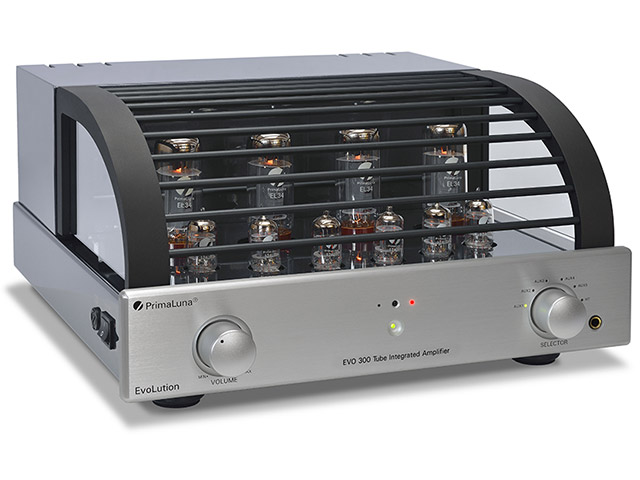

| Specifications | Model EVO 300-1 for EL34 / KT88 |
| Power Ultra-Linear | 42 / 43 / 45 / 48 Watts per channel |
| Power Triode | 24 / 25 / 27 / 30.5 Watts per channel |
| Frequency Response | 10 Hz – 50 kHz +/- 1 dB 8 Hz – 75 kHz +/- 3 dB |
| THD with AABB | < 0.2% @ 1W; < 2% @ Rated Power |
| S/N Ratio | 86 dB / 87 dB / 87 dB / 87 dB |
| Input Impedance | 100 kOhm |
| Input Sensitivity | 270 / 285 / 290 / 300 mV for rated power at max volume |
| Maximum Gain | 36.5 dB / 36.7 dB / 36.8 dB / 36.9 dB |
| Power Consumption | 290 Watts / 300 Watts / 330 Watts / 340 Watts |
| Weight | Net weight: 68.2 lbs / 31 kg Shipping Weight: 77 lbs / 35 kg |
| Dimensions | 15.9″ x 15.2″ x 8.1″ / 405 x 385 x 205 mm (L x W x H) |
| Shipping dimensions | 22.7″ x 18.4″ x 12.4″ / 577 x 468 x 315 mm (L x W x H) |
| Inputs | 5 pairs Stereo RCA, 1 pair Home Theater Input |
| Outputs | 4 & 8 Ohm Speaker Taps, Tape, Stereo/Mono Sub, Headphone |
| Tube Complement | 4 x EL34, 6 x 12AU7 |
| Damping Coefficient | 4 KD (1 kHz) |
| Remote Control | Full |
| Farve | Sort, Sølv |
|---|
